Digital Variable Speed Electric Fan(s) Controller; Push-In and Thread-In probes | #69595

Digital Variable Speed
Fan Controller

New 2nd Generation Model. Supersedes P/N 69596.
For Use with Single or Dual Fan Setups
Features:
  • For Use with Single or Dual Fan Setups
  • Digital Variable Speed
  • 3/8" NPT Thread-in Probe Sensor & Push-In Probe Sensor
  • Easy-to-Read Digital LCD Display
  • Black Aluminum Housing
  • Displays F, C, and Live Amp Usage
  • Includes Thead-in & Push-in Probes
  • PROFORM Parts Brand Product
  • Sold Individually
PART# 69595
Dealer Locator Buy Online

New 2nd Generation Model. Now Available. New features, higher amps, and more. See Features Tab.

PROFORM's 2nd Gen. controller substantially reduces amperage spikes, excessive fan wear, and undesired fan noise that many other fan controllers actually cause. These other controllers turn the fan on to full power when the engine is getting too hot and power it off as soon as the temperature is sufficient, wasting energy and shortening part of life. Maintaining a consistent engine temperature is a more efficient way to keep your engine cool. The variable speed fan controller maintains this efficiency by powering either one or two 12-volt, brushed motor electric fans to run with varying RPMs at whatever speed is needed to maintain a consistent temperature. The fan controller processes a temperature signal from the radiator from a brass probe (push-in and thread-in are included). As the engine approaches the maximum desired temperature, the controller soft starts the engine fan(s) and slowly ramps up to the required speed needed to maintain that temperature. The controller is protected by a weather-resistant, billet aluminum housing that's built to last! The bright digital display is easy to read and use. Mode button toggles between Fahrenheit, Celsius, and live fan(s) amperage usage. Set the temperature with + or – buttons. Mounting hardware and necessary electrical wire bundle is also included.

Control Box Dimensions: 3-3/4" L x 2-3/8" W x 1-15/16" H

  • Increased Amp Capacity (30 Amps per fan or 60 Amps total)
  • Short Circuit Overload Protection (E-fuse, One-click Reset)
  • Air Conditioning On/Off Wire
  • Manual Override On/Off Wire

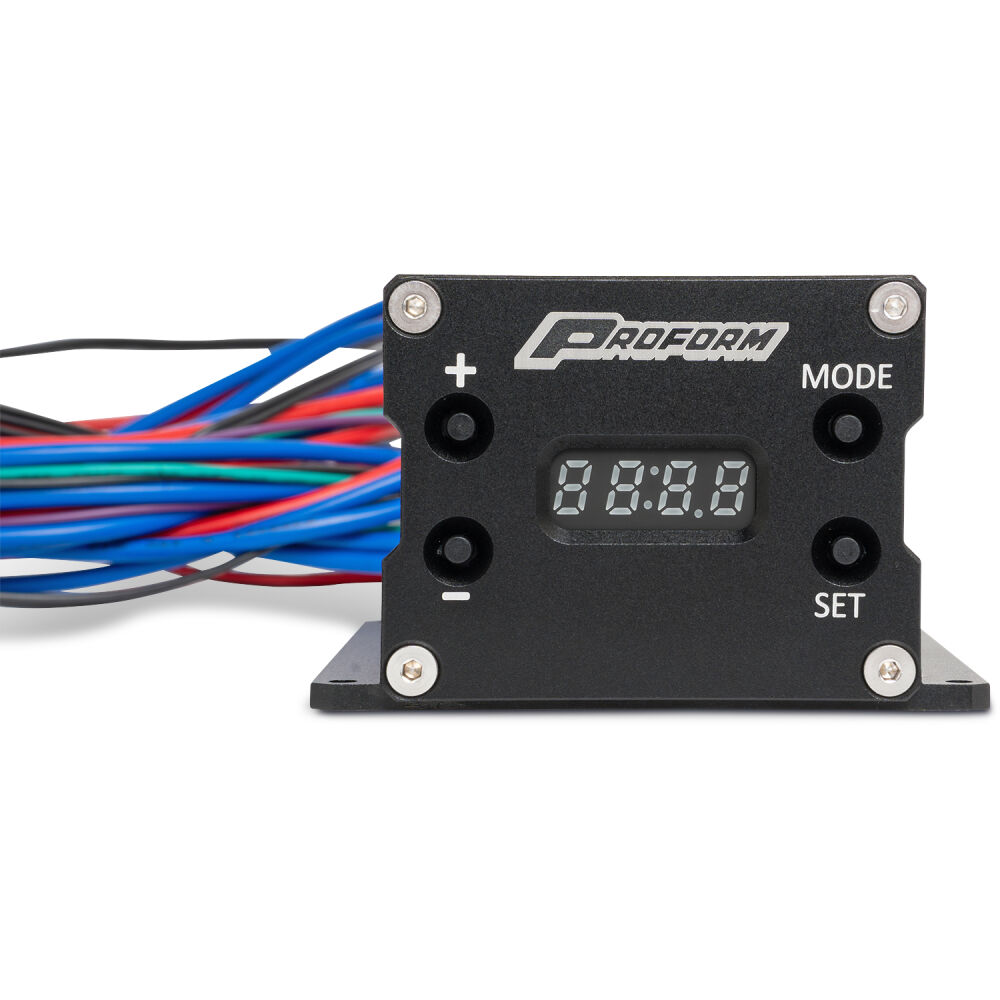

  • Digital display shows Amps, as well as temp in either F or C
  • Push-in & Thread in probes are included
  • Warning Light Wire for optional light
